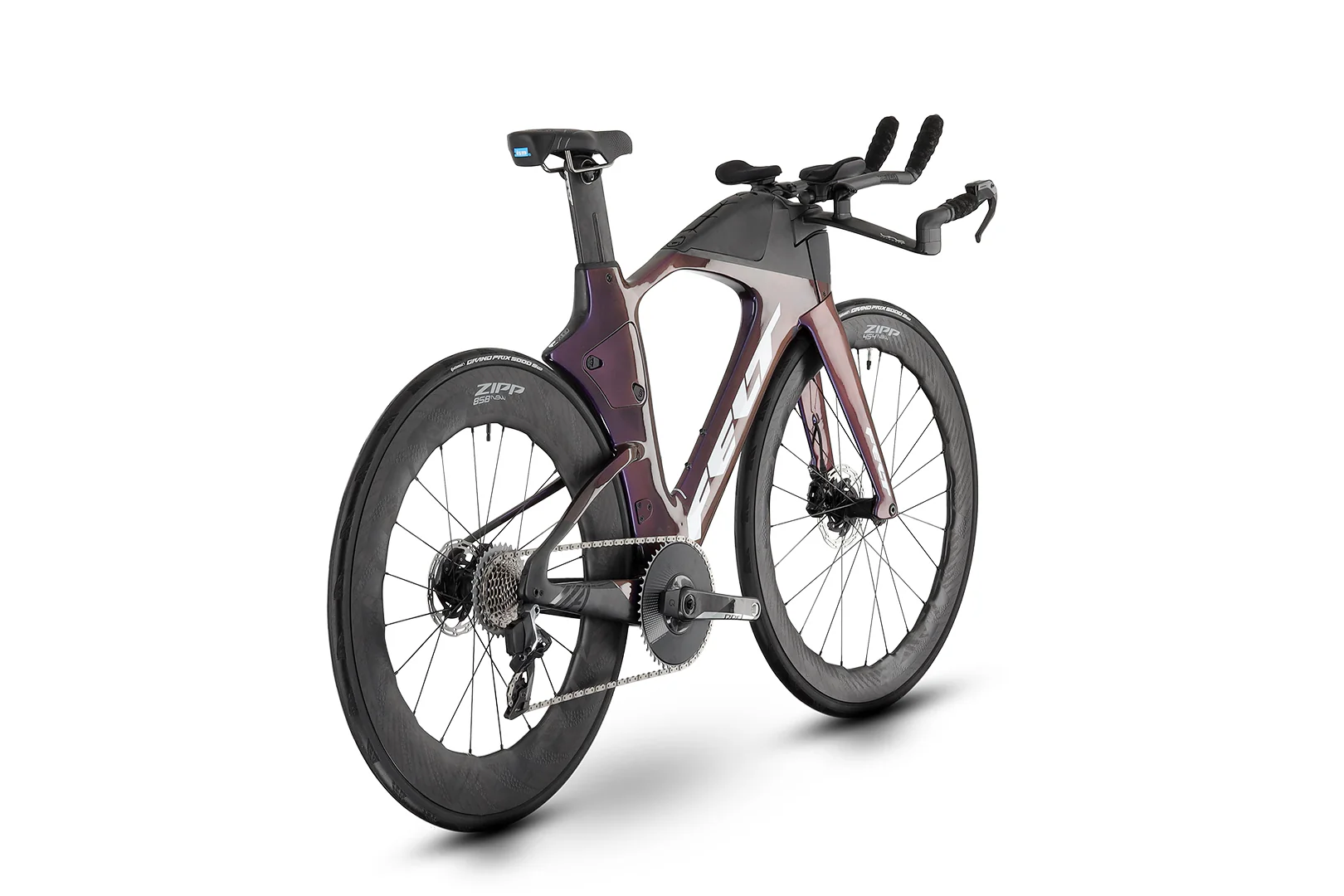

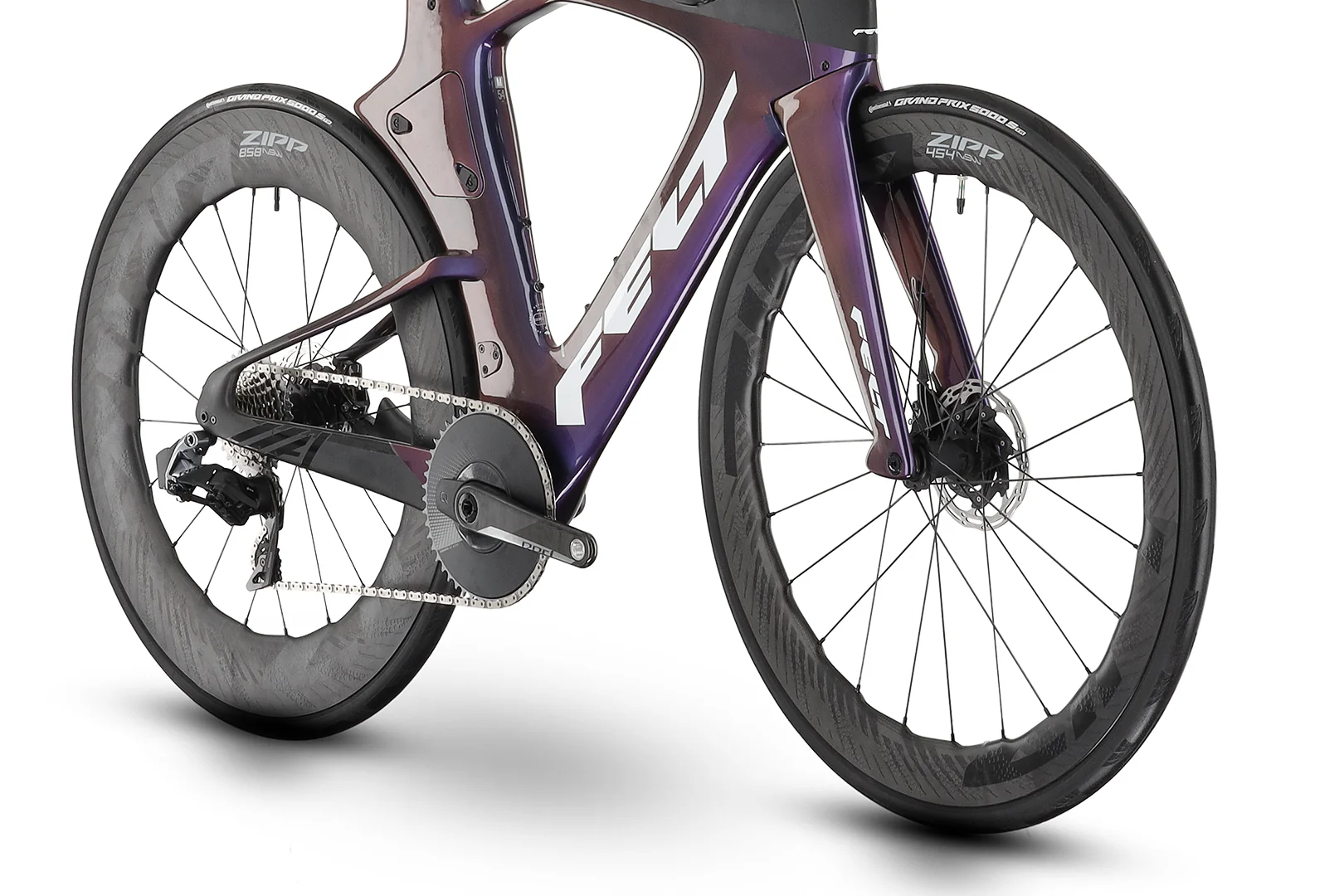

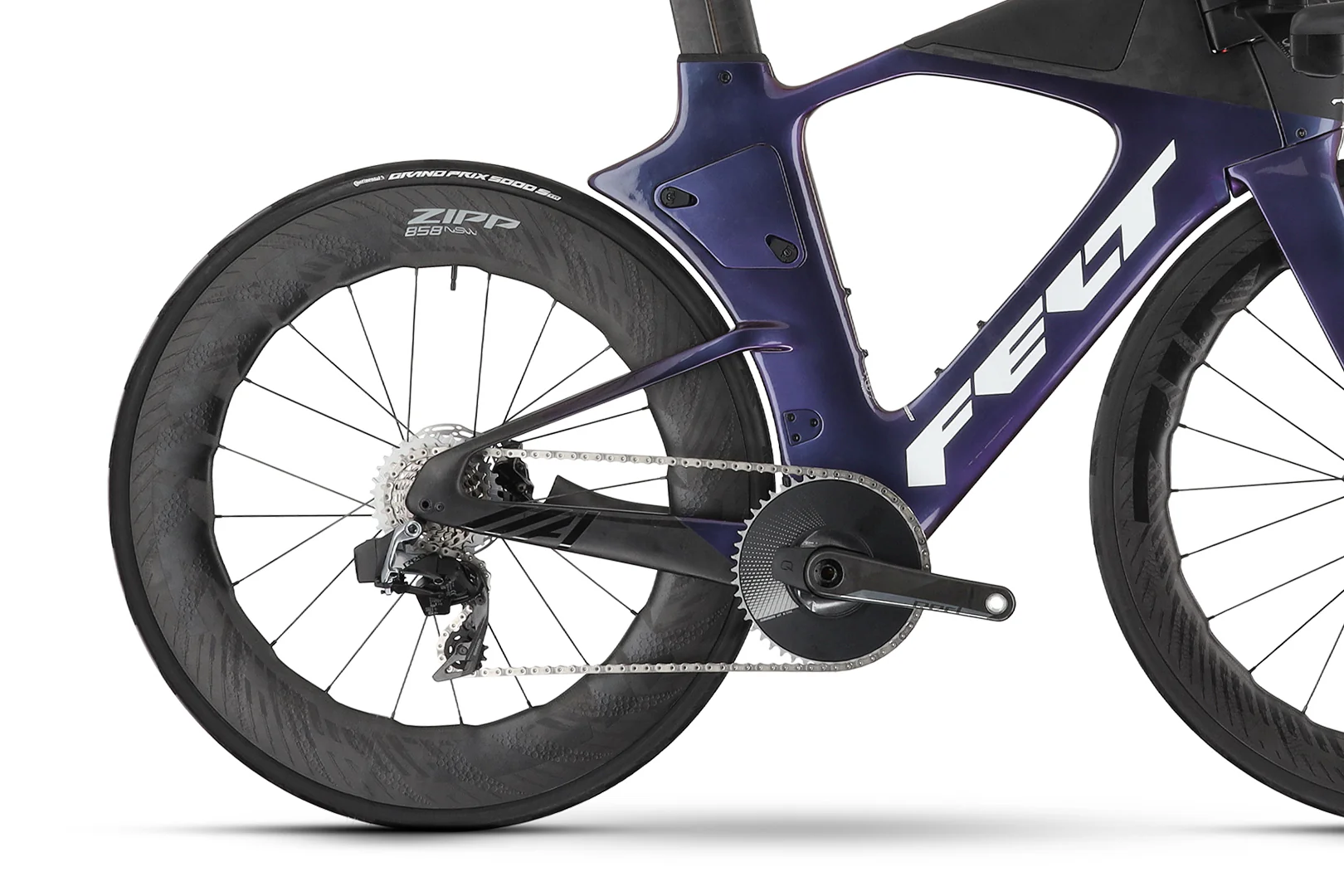

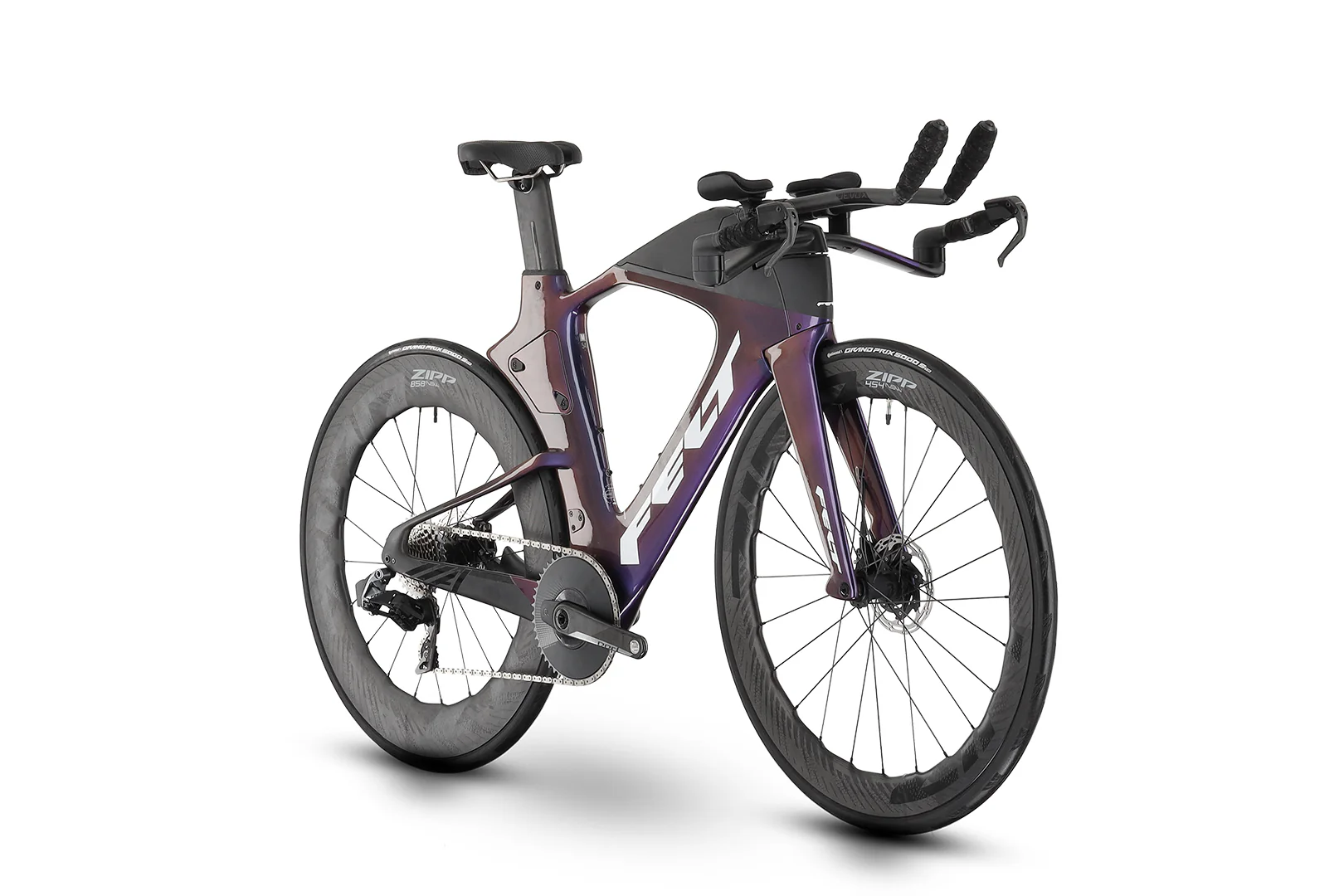

Felt IA FRD 2.0 Ultimate RED eTap AXS Triathlon Bike

Product Description

WORLD CHAMPION SPEED

The latest version of the IA 2.0 platform, this build features SRAM's most performance-oriented triathlon groupset and finishing parts to create an exceptional ride for those who push to the limits and beyond.  In a 1x, single chainring set-up, SRAM's Red eTap AXS group provides a wide range of gearing, the simplicity of a single front gear, and the performance of SRAM's AXS wireless set-up.

Features

Improved Aerodynamics

Zipp's 454/858 NSW carbon wheels offer exceptional aerodynamic advantages and optimal ride quality to truly chase PR's and drop the competition. These disc wheels are stable in the wind and ready for tubeless.

Effortless Shifting

1x simplicity and performance offers a gear range that delivers unrivaled performance in all but the hilliest of events. The 1x SRAM RED eTap AXS drivetrain set-up keeps gear shifts dialed and provides an aero advantage.

Tailored Rider Fit

Felt's basebar and aero extensions offers the ultimate in front-end adjustability. Change pad heights, adjust arm cup alignment, and modify extension tilt to get your perfect set-up as you reach for your most ambitious goals.

Specifications

Specifications	Details

Frameset

Frame

Felt IA 2.0, UHC Ultimate + TeXtreme carbon

Fork	Felt Integrated Aero Disc 2.0, UHC Ultimate + TeXtreme carbon

Brakes & Drivetrain

Front Brake

SRAM S-900 AERO HRD, 2-piston, Hydraulic disc brake

Front Brake Rotor

SRAM Centerline XR, 140 mm, Center lock

Rear Brake

SRAM S-900 AERO HRD, 2-piston, Hydraulic disc brake

Rear Brake Rotor

SRAM Centerline XR, 140 mm, Center lock

Brake Lever

SRAM S-900 AERO HRD

Rear Derailleur

SRAM RED eTap AXS, 12-S

Cassette

SRAM RED XG-1290, 10-33 T

Chain

SRAM RED

Crankset

SRAM RED AXS Power Meter, 48 T

Shift Lever

SRAM eTap MultiClics

Wheels

Wheelset

Zipp 454/858 NSW Carbon, Tubeless ready, Center lock, 12x100/12x142 mm

Tire	Continental Grand Prix 5000 TR, 700x25

Cockpit

Headset

IS (IS-2)

Handlebar

Aerobar-Stem-Combination: Felt Dagger Direct 2.0 ASC / Extensions: Devox Ergomod

Bar Tape

Felt EVA arm pads with anti-microbial cover and Felt Gel tape

Saddle

ISM PS1.0

Seat Post

Felt Aero TRI IL 2.0 VM



Size guide

	47	48	51	54	56	58
Rider Height	152.4 - 167.6 cm 5’0” - 5’5”	152.4 - 167.6 cm 5’0” - 5’5”	167.6 - 172.7 cm 5’5” - 5’8”	172.7 - 180.3 cm 5’8” - 5’11”	180.3 - 187.9 cm 5’11” - 6’2”	187.9 - 195.5 cm 6’2” - 6’5”
Rider inseam Measured from crotch to floor.	70.8 - 74.4 cm 27.9” - 29.3”	70.8 - 74.4 cm 27.9” - 29.3”	74.4 - 77.9 cm 29.3” - 30.7”	77.9 - 83.0 cm 30.7” - 32.7”	83.0 - 85.8 cm 32.7” - 33.8”	85.8 - 88.9 cm 32.7” - 35.0”



Geometry

	48	51	54	56	58
(A) Top Tube Length	468 mm	486 mm	510 mm	541 mm	573 mm
(B) Seat Tube Length	496 mm	525 mm	546 mm	571 mm	598 mm
(C) Seat Tube Angle	79.5 °	79 °	78.5 °	78 °	77.5 °
(D) Head Tube Length	67.5 mm	96 mm	111 mm	136 mm	163 mm
(E) Steering Angle	71.5 °	71.5 °	72 °	72 °	72 °
(F) Chain Stay Length	405 mm	405 mm	405 mm	405 mm	405 mm
(G) Wheel Base	970 mm	987 mm	1000 mm	1029 mm	1058 mm
(H) Standover Height	735 mm	749 mm	765 mm	779 mm	793 mm
(I) BB-Drop	72 mm	72 mm	72 mm	72 mm	72 mm
(K) Fork Offset	50 mm	50 mm	45 mm	45 mm	45 mm
(L) Stack	478 mm	505 mm	522 mm	546 mm	572 mm
(M) Reach	379 mm	387 mm	404 mm	425 mm	445 mm
(O) Crank Length	165 mm	165 mm	170 mm	170 mm	172.5 mm
