Marin Bobcat Trail 4 MTB Bicycle

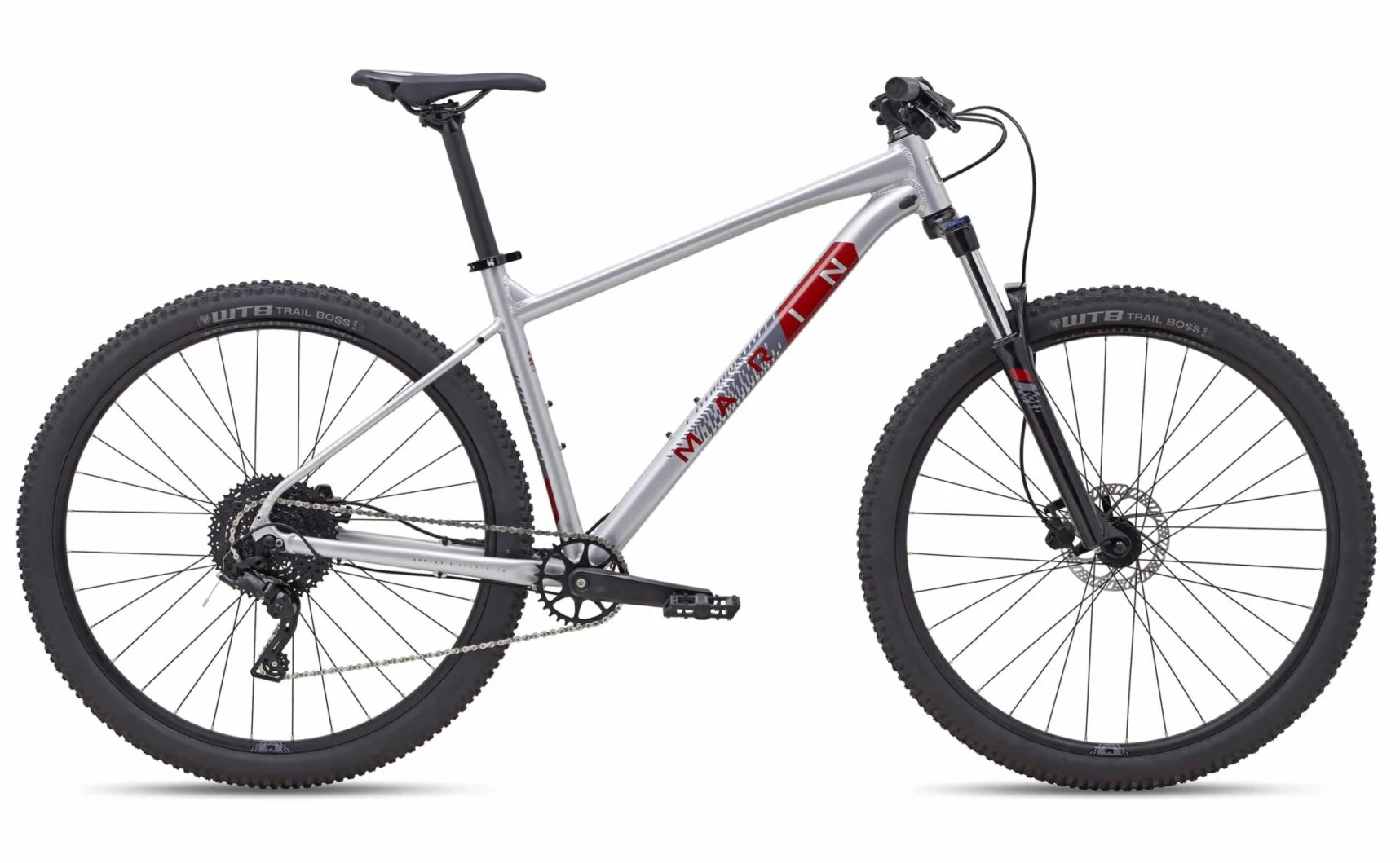

Product image 1

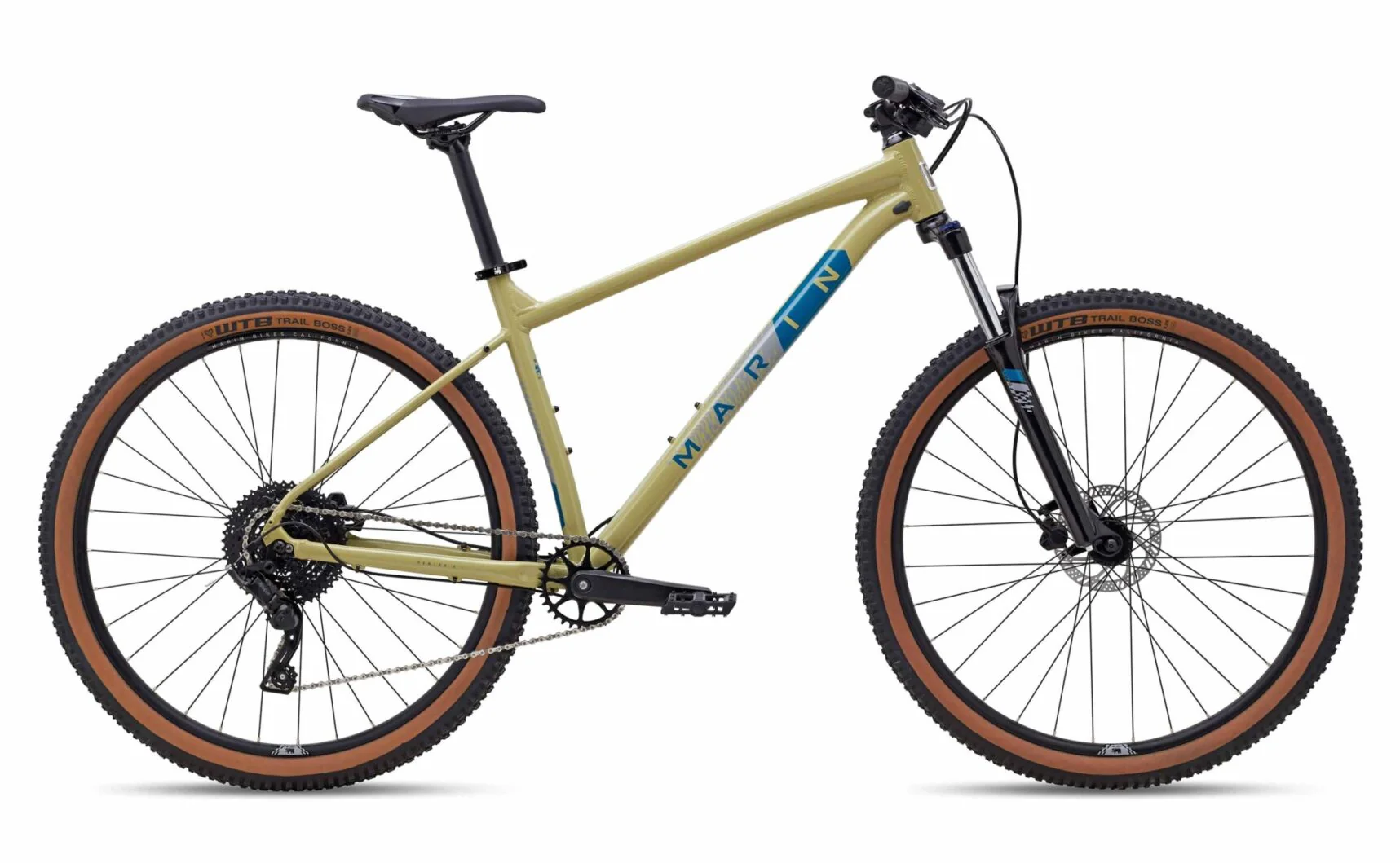

Product image 2

Marin Bobcat Trail 4 MTB Bicycle

  • SUSPENSION: SR Suntour XCM HLO-DS
  • WHEEL SIZE: 27.5", 29"
  • FRAME: Aluminum
  • SIZE RANGE: S, M, L, XL

HARDTAIL TRAIL RIDING

AGGRESSIVE SINGLETRACK

The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.


    SPECIFICATIONS

    • FRAME

      Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

    • FRONT SUSPENSION

      SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset

    • RIMS

      Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

    • HUB, REAR

      Forged Alloy, Disc, 32H

    • HUB, FRONT

      Forged Alloy, Disc, 32H

    • SPOKE, NIPPLES

      14g Black Stainless Steel

    • TIRES

      WTB Trailboss Comp, 27.5/29x2.25, Wire Bead

    • DERAILLEUR, REAR

      MicroSHIFT Advent 9, Clutch

    • DERAILLEUR, FRONT

      -

    • SHIFT LEVER

      MicroSHIFT Advent 9 Trail

    • CRANKSET

      Alloy Crank, Steel Narrow-Wide Chainring, 32T

    • BOTTOM BRACKET

      Sealed Cartridge Bearings, Square Taper

    • CHAIN

      KMC X9

    • CASSETTE

      SunRace 9-Speed, 11-46T

    • BRAKE, FRONT

      Tektro M275 Hydraulic Disc, 180mm Rotor

    • BRAKE, REAR

      Tektro M275 Hydraulic Disc, 160mm Rotor

    • BRAKE LEVERS

      Tektro M275 Hydraulic Disc

    • HANDLEBAR

      Marin 31.8 Riser, 12mm Rise, 780mm Width

    • STEM

      Marin Alloy, 31.8mm Clamp, 45mm

    • GRIPS

      Marin MTB, Closed End

    • HEADSET

      FSA No.10-P

    • SEATPOST

      Marin Alloy, 30.9

    • SADDLE

      Marin MTB

    • PEDALS

      Nylon Platform


    XS S M (27.5) M (29) L XL
    A Stack 594.7 599.3 604 629.3 634 638.5
    B Reach 420 435 445 445 465 480
    C Headtube Angle 67.5° 67.5° 67.5° 67° 67° 67°
    D Headtube Length 100 105 110 110 115 120
    E Seattube Angle 74.5° 74.5° 74.5° 74.5° 74.5° 74.5°
    F Seattube Length 330 381 431 431 482 520
    G Toptube Effective 585 601 612.5 619.5 640.8 657
    H BB Height 307 307 307 311.5 311.5 311.5
    I BB Drop 48 48 48 61 61 61
    J Chainstay 425 425 425 440 440 440
    K Wheelbase 1116.4 1133.3 1145.2 1177.4 1199.3 1216.3
    L Standover Height 639.42 659.07 705.48 714.04 744.93 774.59
    M Fork Offset 46 46 46 46 46 46
    Seatpost Diameter 30.9 30.9 30.9 30.9 30.9 30.9
    Handlebar Width 780 780 780 780 780 780
    Stem Length 45 45 45 45 45 45
    Crank Length 170 170 175 175 175 175



    Select Color
    Select Size
    Select Wheel Size
    From $183.74

    Original: $612.45

    -70%
    Marin Bobcat Trail 4 MTB Bicycle—

    $612.45

    $183.74

    Product Information

    Shipping & Returns

    Description

    • SUSPENSION: SR Suntour XCM HLO-DS
    • WHEEL SIZE: 27.5", 29"
    • FRAME: Aluminum
    • SIZE RANGE: S, M, L, XL

    HARDTAIL TRAIL RIDING

    AGGRESSIVE SINGLETRACK

    The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.


      SPECIFICATIONS

      • FRAME

        Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

      • FRONT SUSPENSION

        SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset

      • RIMS

        Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

      • HUB, REAR

        Forged Alloy, Disc, 32H

      • HUB, FRONT

        Forged Alloy, Disc, 32H

      • SPOKE, NIPPLES

        14g Black Stainless Steel

      • TIRES

        WTB Trailboss Comp, 27.5/29x2.25, Wire Bead

      • DERAILLEUR, REAR

        MicroSHIFT Advent 9, Clutch

      • DERAILLEUR, FRONT

        -

      • SHIFT LEVER

        MicroSHIFT Advent 9 Trail

      • CRANKSET

        Alloy Crank, Steel Narrow-Wide Chainring, 32T

      • BOTTOM BRACKET

        Sealed Cartridge Bearings, Square Taper

      • CHAIN

        KMC X9

      • CASSETTE

        SunRace 9-Speed, 11-46T

      • BRAKE, FRONT

        Tektro M275 Hydraulic Disc, 180mm Rotor

      • BRAKE, REAR

        Tektro M275 Hydraulic Disc, 160mm Rotor

      • BRAKE LEVERS

        Tektro M275 Hydraulic Disc

      • HANDLEBAR

        Marin 31.8 Riser, 12mm Rise, 780mm Width

      • STEM

        Marin Alloy, 31.8mm Clamp, 45mm

      • GRIPS

        Marin MTB, Closed End

      • HEADSET

        FSA No.10-P

      • SEATPOST

        Marin Alloy, 30.9

      • SADDLE

        Marin MTB

      • PEDALS

        Nylon Platform


      XS S M (27.5) M (29) L XL
      A Stack 594.7 599.3 604 629.3 634 638.5
      B Reach 420 435 445 445 465 480
      C Headtube Angle 67.5° 67.5° 67.5° 67° 67° 67°
      D Headtube Length 100 105 110 110 115 120
      E Seattube Angle 74.5° 74.5° 74.5° 74.5° 74.5° 74.5°
      F Seattube Length 330 381 431 431 482 520
      G Toptube Effective 585 601 612.5 619.5 640.8 657
      H BB Height 307 307 307 311.5 311.5 311.5
      I BB Drop 48 48 48 61 61 61
      J Chainstay 425 425 425 440 440 440
      K Wheelbase 1116.4 1133.3 1145.2 1177.4 1199.3 1216.3
      L Standover Height 639.42 659.07 705.48 714.04 744.93 774.59
      M Fork Offset 46 46 46 46 46 46
      Seatpost Diameter 30.9 30.9 30.9 30.9 30.9 30.9
      Handlebar Width 780 780 780 780 780 780
      Stem Length 45 45 45 45 45 45
      Crank Length 170 170 175 175 175 175
