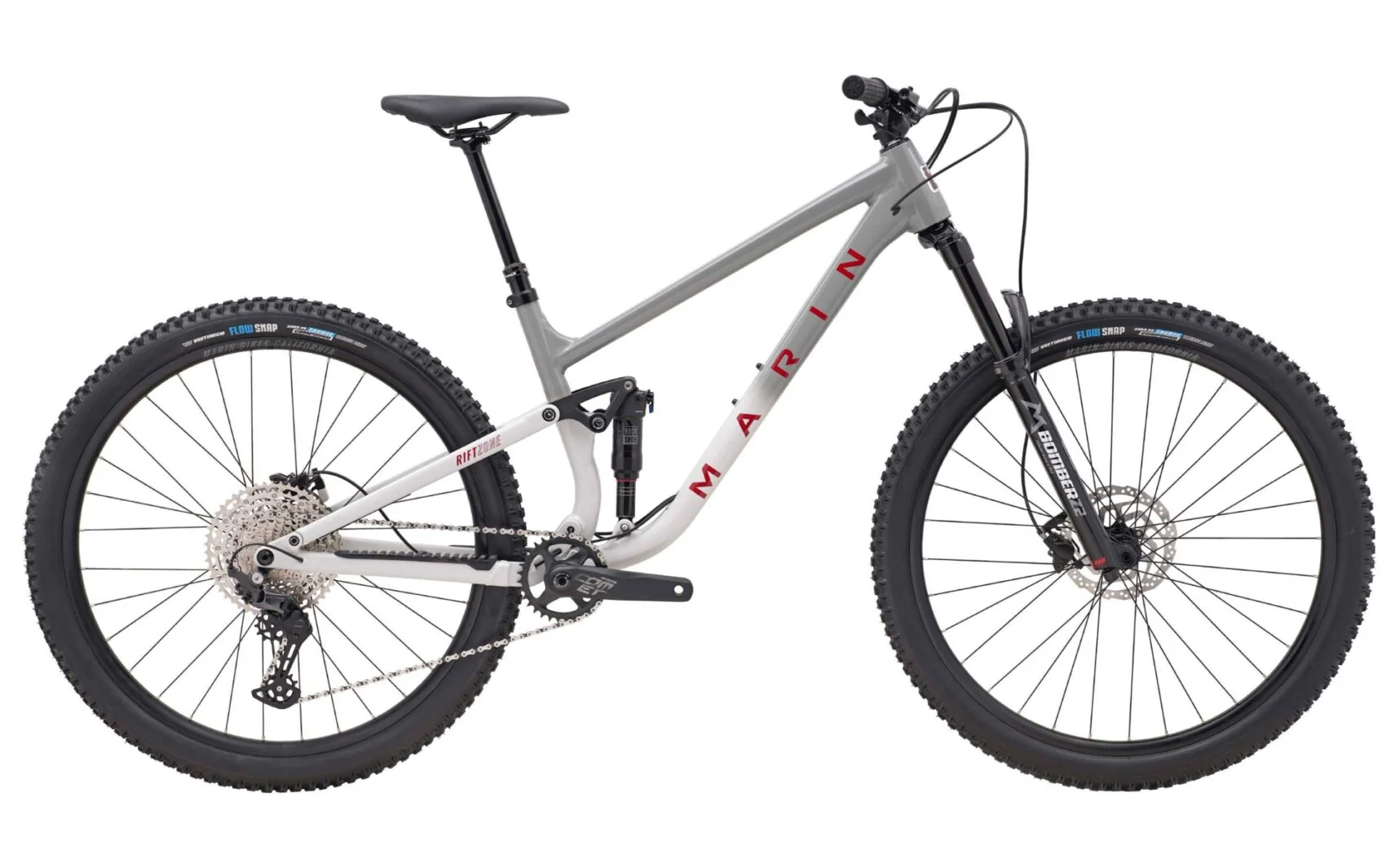

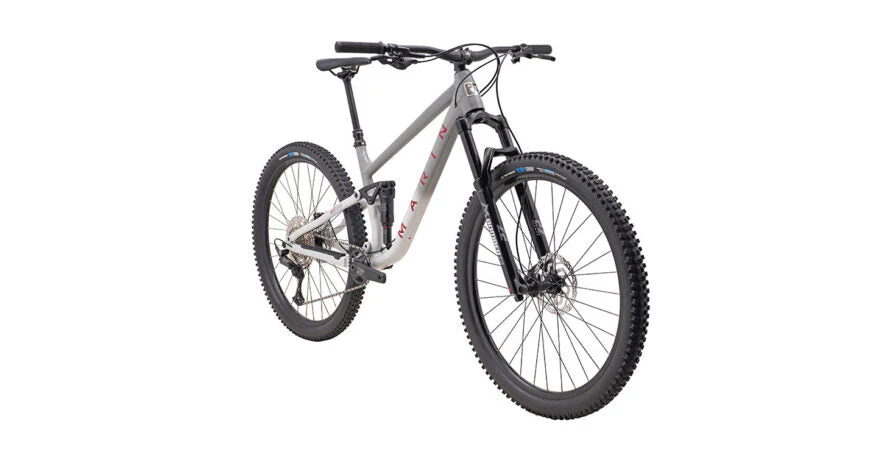

Marin Rift Zone 2 29er MTB Bicycle (2021)

FAST PACED, EPIC RIDES

PUSHING THE ENVELOPE UP AND DOWN THE TRAIL

CHASING PERSONAL RECORDS

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

• SPECIFICATIONS

  • FRAME

    Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs

  • FORK

    RockShox Recon Silver RL 29", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset

  • SHOCK

    X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

  • RIMS

    Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

  • HUB REAR

    Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

  • HUB FRONT

    Shimano HF-MT400B, 110x15mm, Centerlock

  • SPOKES

    14g Black Stainless Steel

  • TIRES

    Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready

  • DERAILLEUR REAR

    Shimano Deore SGS, Shadow Plus, Direct Attachment, 11-Speed

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    Shimano Deore, 11-Speed, SL-5100R

  • CRANKSET

    Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

  • BOTTOM BRACKET

    External Sealed Cartridge Bearing

  • CHAIN

    KMC X-11 Silver and Black

  • CASSETTE

    SunRace, 11-Speed, 11-51T, ED Black

  • BRAKES FRONT

    Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

  • BRAKES REAR

    Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

  • BRAKE LEVERS

    Shimano BL-MT201 Hydraulic Disc

  • HANDLEBAR

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • STEM

    Marin 3D Forged Alloy, 35mm

  • GRIPS

    Marin MTN, Closed End

  • HEADSET

    FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • SEATPOST

    Marin Alloy, 30.9mm

  • SADDLE

    Marin Speed Concept

  • PEDALS

    -

  • EXTRAS

    Closed 9-12 Thru-Axle QR System

  SUSPENSION SETUP

  REAR SHOCK SETUP

  Recommended Sag = 30%/15mm

  Step 1: Set correct pressure in rear shock.

  Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).

  Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.

  Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.

  Step 5: Adjust rebound setting to ensure proper control.

  FORK SETUP

  Marin recommends that all bikes front and rear suspension feel balanced

  Step 1: After rear sag is set follow the recommended pressure from the fork manufacture.

  Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.

  Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.
