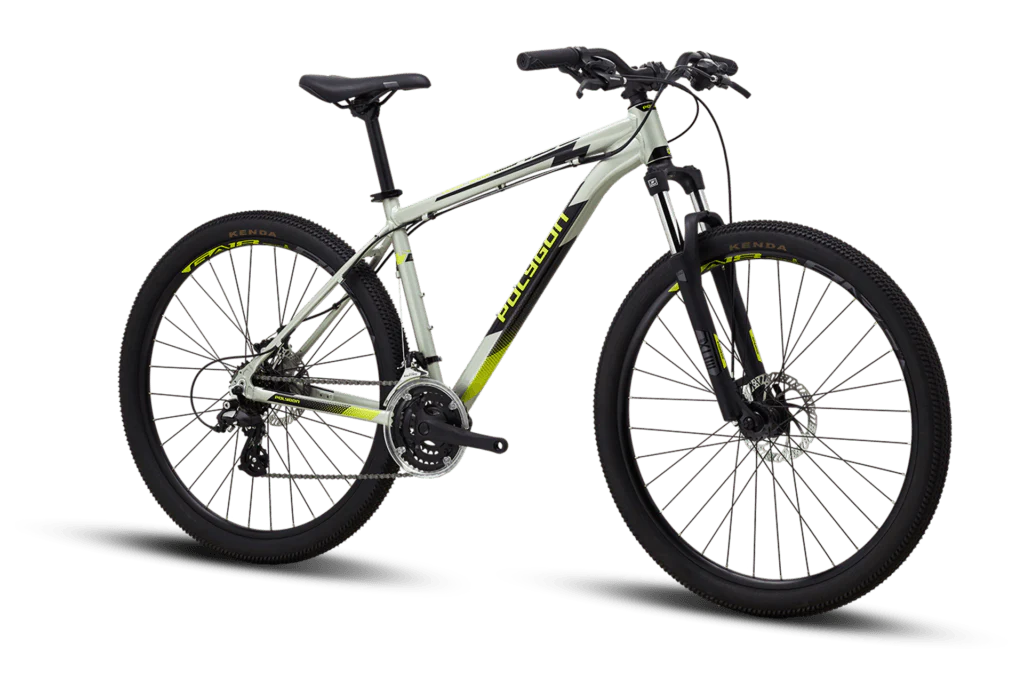

Polygon Cascade 3 MTB Bicycle (2022)
The Cascade 3 was created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays, and planning to go for recreational riding on the weekends. The Cascade is built with a lightweight and durable AL6 frame with modern geometry for a more comfortable ride. The component spec includes: 27.5” wheels for less rolling resistance, a 100mm travel suspension fork to smooth out the bumps while riding down fire roads, and disc brakes to keep riders in control. The new Cascade 3 is a reliable companion for day-to-day use and sport.
|
AL6 XC SPORT FRAME |
|
SUNTOUR XCE28 100MM TRAVEL |
|
- |
|
ZERO STACK (ZS) THREADLESS ZS 44/28.6 | 44/30 |
|
ENTITY OE, ALLOY, E: 45MM, B: 31.8MM, R/D: 0 |
|
STEEL, W: 680MM, B: 31.8MM, R/D: 40MM |
|
SHIMANO TY300 6/7-SPEED DIRECT ATTACH |
|
SHIMANO ST-EF41 3x7-SPEED TRIGGER |
|
CARTRIDGE BEARING 68x119MM |
|
STEEL TCSH2-CFPG, 42/34/24T 7-SPEED |
|
SHIMANO TZ500 7-SPEED 14-28T |
|
KMC HV-500 |
|
PP FLAT PEDALS |
|
MECHANICAL DISC BRAKE |
|
DOUBLE WALL ALLOY RIMS W/ ALLOY HUBS |
|
DELI 27.5x2.10” |
|
MTB STEEL RAIL SADDLE |
|
NTITY OE, ALLOY |
|
27.5" |
|
Grey |
| Height/cm | 152.5-165 | 162.5-175 | 172.5-185 | 182.5-195 |
|---|---|---|---|---|
| Size | S | M | L | XL |
| Cascade | ✔ | ✔ | ✔ | ✔ |
Geometry
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 406 | 73 | 73 | 100 | 69 | 565 | 303 | 47 (DROP) | 430 | 1065.7 | 383.7 | 593.1 | 700 |
| M | 456 | 73 | 73 | 105 | 69 | 585 | 303 | 47 (DROP) | 430 | 1086.1 | 402.2 | 597.8 | 742 |
Original: $311.50
-70%$311.50
$93.45Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Cascade 3 was created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays, and planning to go for recreational riding on the weekends. The Cascade is built with a lightweight and durable AL6 frame with modern geometry for a more comfortable ride. The component spec includes: 27.5” wheels for less rolling resistance, a 100mm travel suspension fork to smooth out the bumps while riding down fire roads, and disc brakes to keep riders in control. The new Cascade 3 is a reliable companion for day-to-day use and sport.
|
AL6 XC SPORT FRAME |
|
SUNTOUR XCE28 100MM TRAVEL |
|
- |
|
ZERO STACK (ZS) THREADLESS ZS 44/28.6 | 44/30 |
|
ENTITY OE, ALLOY, E: 45MM, B: 31.8MM, R/D: 0 |
|
STEEL, W: 680MM, B: 31.8MM, R/D: 40MM |
|
SHIMANO TY300 6/7-SPEED DIRECT ATTACH |
|
SHIMANO ST-EF41 3x7-SPEED TRIGGER |
|
CARTRIDGE BEARING 68x119MM |
|
STEEL TCSH2-CFPG, 42/34/24T 7-SPEED |
|
SHIMANO TZ500 7-SPEED 14-28T |
|
KMC HV-500 |
|
PP FLAT PEDALS |
|
MECHANICAL DISC BRAKE |
|
DOUBLE WALL ALLOY RIMS W/ ALLOY HUBS |
|
DELI 27.5x2.10” |
|
MTB STEEL RAIL SADDLE |
|
NTITY OE, ALLOY |
|
27.5" |
|
Grey |
| Height/cm | 152.5-165 | 162.5-175 | 172.5-185 | 182.5-195 |
|---|---|---|---|---|
| Size | S | M | L | XL |
| Cascade | ✔ | ✔ | ✔ | ✔ |
Geometry
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 406 | 73 | 73 | 100 | 69 | 565 | 303 | 47 (DROP) | 430 | 1065.7 | 383.7 | 593.1 | 700 |
| M | 456 | 73 | 73 | 105 | 69 | 585 | 303 | 47 (DROP) | 430 | 1086.1 | 402.2 | 597.8 | 742 |
