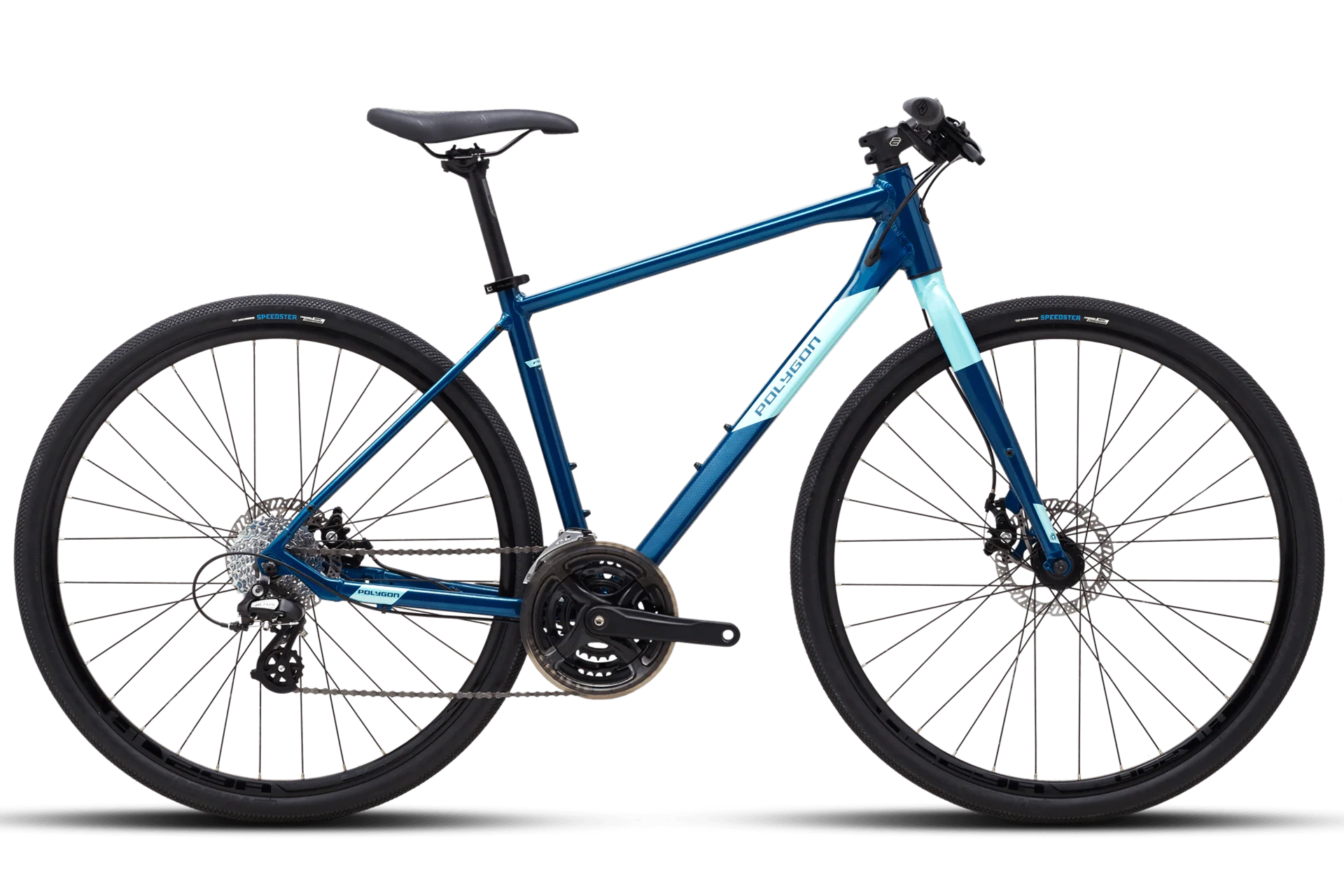

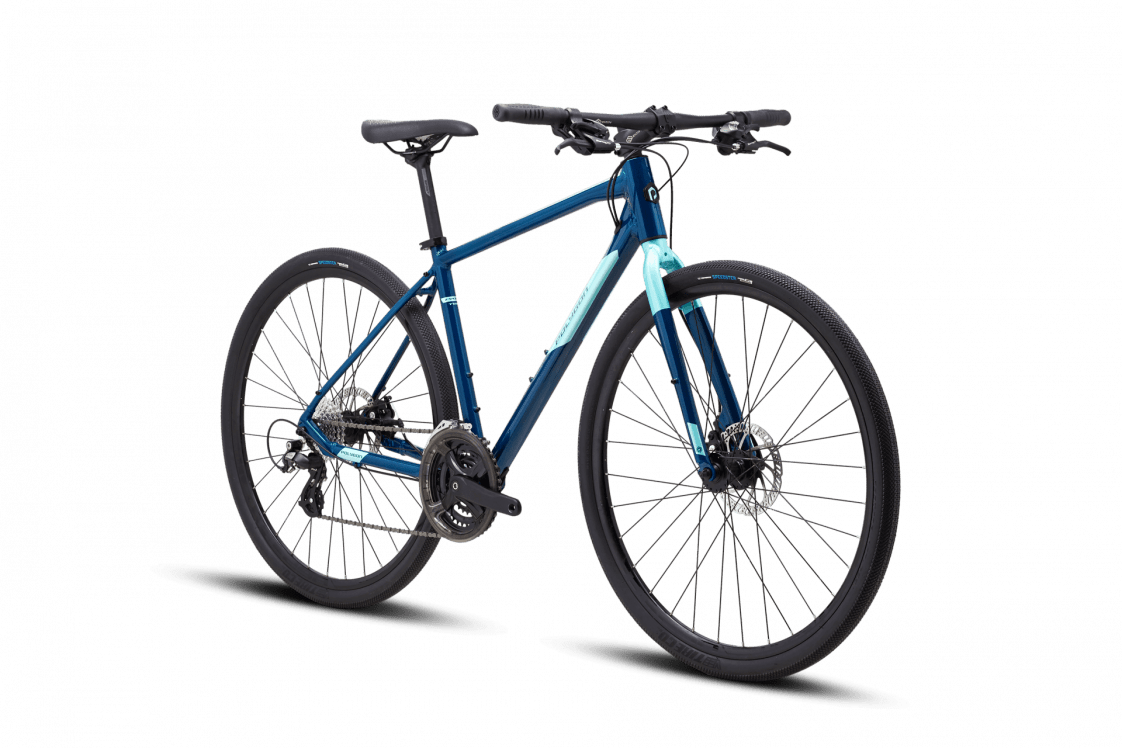

Polygon Path 2 Hybrid Bicycle (2021)

The Polygon Path 2 combines speed, agility and style in an urban bike. Designed by combining the efficiency of a road bike with a specific commuter geometry. This bike features a tough and light AL6 frame, an alloy rigid fork, hydraulic disc brakes and 700x35c tires for a comfortable ride. The Path 2 is the perfect bike for social rides with friends or for dodging traffic to make it to a meeting on time.

Frame

AL6 PAVEMENT, 10X135 OLD

Fork	ALUTECH ALLOY RIGID FORK

Rear Shock

-

Head Set

INTERNAL CAGED BEARING

Stem	ENTITY ALLOY 75MM

Handlebar

ENTITY ALLOY 700MM 31.8MM BARBORE

Rear Derailleur

SHIMANO ALTUS RD-M310 8 SPEED

Shifter

SHIMANO ST-TX800 3X8 SPEED

Bottom Bracket

BSA THREADED

Crank Set

PROWHEEL TY-CN99 48/38/28T

Cassette

SHIMANO ALTUS 8 SPEED 11-32T

Chain

KMC Z8

Pedal

PP FLAT PEDAL

Brake

TEKTRO MD-M280 MECHANICAL DISC BRAKE

Wheel Set

ENTITY RIMS WITH ALLOY HUB

Tire	VEE SPEEDSTER 700X40C

Saddle

ENTITY STEEL RAIL

Seat Post

ENTITY SPORT 15MM OFFSET

Wheel Size

700C

Color

GREEN

Height/cm	150-160	160-170	170-180	180-190
Size	S	M	L	XL
Seat Tube Length/in	✔	✔	✔	✔

Geometry

A	B	C	D	E	F	G	H	I	J	K	L	M
Size	Seat Tube Length	Seat Tube Angle	Effective Seat Tube Angle	Head Tube Length	Head Tube Angle	Effective Top Tube	BB Height	BB Offset	Chainstay Length	Wheelbase	Frame Reach	Frame Stack	Standover Height
S	430	75	75	110	71	530	281	70 (DROP)	440	1030	380	558	705
M	460	74.5	74.5	140	71	553	281	70 (DROP)	440	1050	390	586	735
L	490	74	74	170	71.5	577	281	70 (DROP)	440	1065	400	617	766
